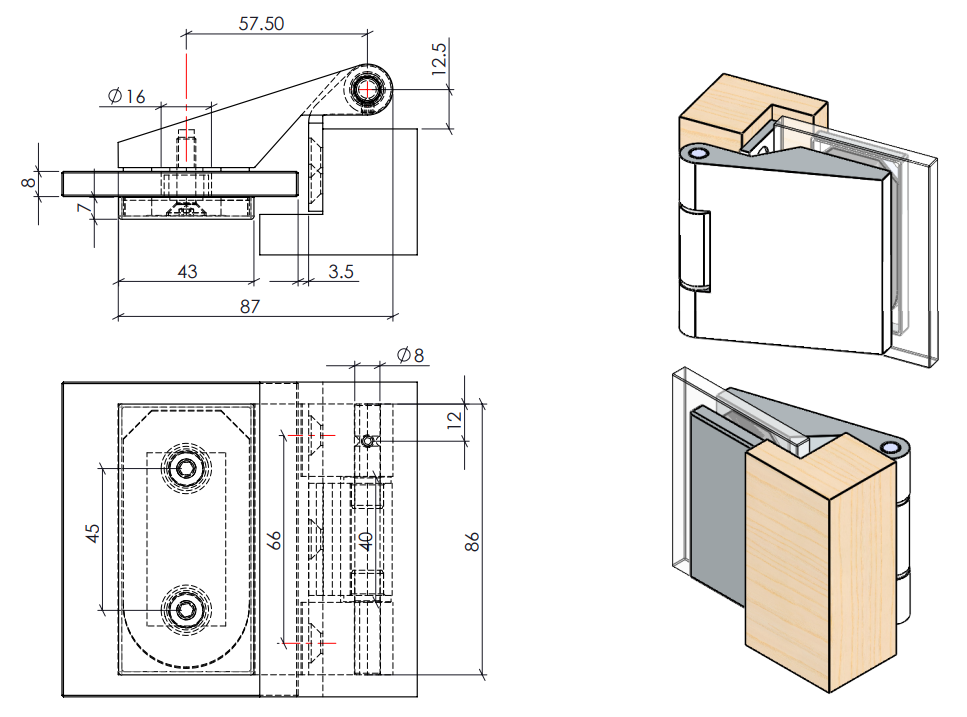

Frameless glass door hinge similar to Dorma 11.342
Our GHN-11342-GTWOU similar to Dorma 11.342 frameless glass door hinge for wooden frames, hinge flap for mortising into frame, zinc plated steel pin, plastic bushing.
FEATURES
- Glass to Wall
- Outwards opening
- Single action opening, open in one direction only
- Opening angle 180 degree
- 100% made in Taiwan
SPECIFICATION
- Material: Aluminum
- Finish: Polished chrome or aluminum anodized
- Apply for 8-10mm glass thickness
- Maximum door weight for 2 hinges 55 kgs,
- Maximum door width 1000 mm
- Each hinge requires 2 holes with diameter 16mm in glass
